Quickstart

This guide will help you to get started with the Abra API package for iOS.

Setup

The Swift Package is published at GitHub

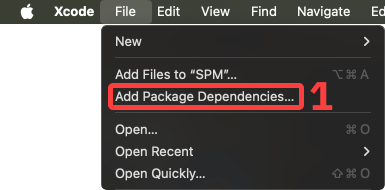

1. Open Xcode and select File > Add Package Dependencies... from the menu bar.

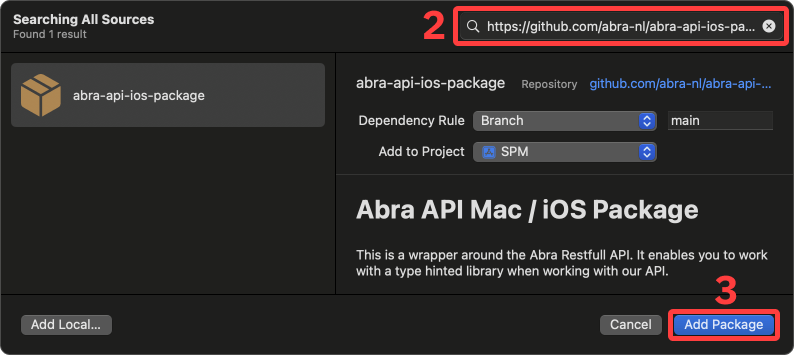

2. Paste the URL of the package in the search field in the top-right corner:

   https://github.com/abra-nl/abra-api-ios-package

3. Press Add Package in the bottom-right corner.


   tip

   You can also set Dependency Rule to Exact Version, for example 1.1.0.

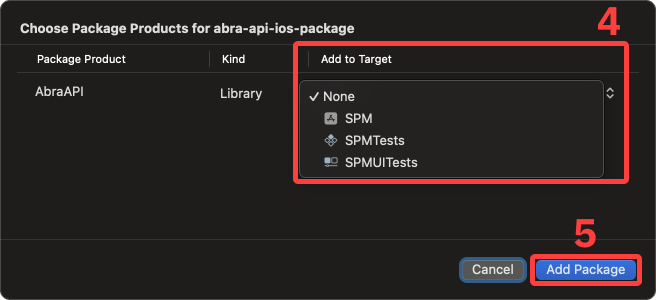

4. Select your UI testing target in the Add to Target column.

5. Press Add Package in the bottom-right corner.



tip

Check the release notes for available version.

Usage

After adding the package, you are ready to use it in your test target.

1. Import the API:

   import AbraAPI

2. Authenticate using your credentials or token:

   let user = try await AbraAPIClient.shared.login(
     email: "name@example.com",
     password: "XXXXXXXXXX"
   )
   AbraAPIClient.shared.token = user.token

3. Upload results:

   let container = Results()
   results.forEach { result in
     container.add(
       /* Parameters */
     )
   }

   let response = try await api.createResults(
     screenId: "XXXXXXXXXX",
     results: container
   )

Example

tip

Also check the Abra SDK for iOS to learn how to audit the accessibility of your app.

warning

To avoid import conflicts when using Abra API and Abra SDK together, you need to add typealias for Result.

SDKResult.swift

import AbraSDK

typealias SDKResult = Result

and

APIResult.swift

import AbraAPI

typealias APIResult = Result

This will be fixed in a new version.

APITestCase.swift

import XCTest
import AbraAPI

class APITestCase: AbraTestCase {

    internal var api: AbraAPIClient!

    /// Setup the Abra API
    override func setUp() async throws {
        try await super.setUp()

        // Login to get new token, or use existing token
        let user = try await AbraAPIClient.shared.login(
            email: "name@example.com",
            password: "XXXXXXXXXX"
        )
        AbraAPIClient.shared.token = user.token

        self.api = AbraAPIClient.shared
    }

    /// Upload audit results to the Abra Dashboard
    func testAPI() async throws {
        // Perform an audit using Abra rules
        let rules = abra.abraRuleBuilder.all().build()
        let results: [SDKResult] = try abra.audit(rules: rules)

        // Create a result container and add audit results
        let container = Results()
        try results.forEach { result in
            // Map SDK type to API type
            guard let type = SeverityType(rawValue: result.metadata.type.rawValue) else {
                fatalError("Missing support for severity type: \(result.metadata.type)")
            }

            // Use hash of first element for deduplication
            let hash = result.elements.first?.hash.description

            // Convert related elements to JSON
            let elements = try result.elements.map { try $0.toJSON() }

            // Convert related snapshots to JSON
            let snapshots = try result.snapshots.map { try $0.toJSON() }

            // Retrieve related screenshot images
            let screenshots = result.snapshots.map { $0.screenshot.image }

            // Add properties to container for optimized uploading
            container.add(
                vendor: result.metadata.vendor.identifier,
                rule: result.metadata.rule.identifier,
                type: type,
                description: result.metadata.message,
                source: .abraSDK,
                hash: hash,
                elements: elements,
                snapshots: snapshots,
                screenshots: screenshots
            )
        }

        // Create results for a specific screen
        let response = try await api.createResults(
            screenId: "XXXXXXXXXX",
            results: container
        )
    }
}
